Products

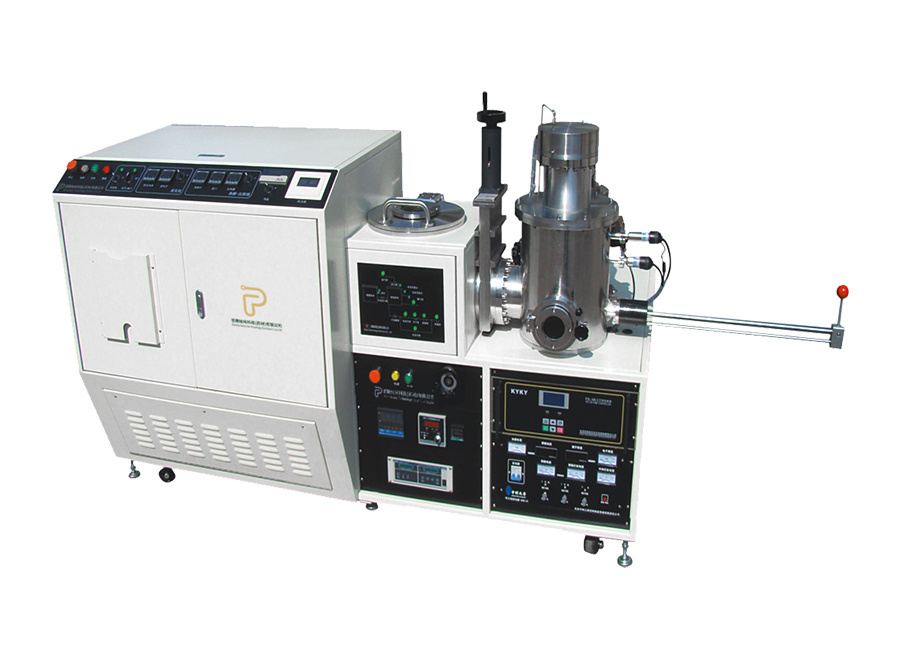

Small Parylene Coating Equipment
Classification:
CVD Vacuum Equipment
Item:PTP-3V
Dimensions:(L)1859*(W)900*(H)1190mm
Floor Space:7.243m³
External Chamber Dimensions:Φ292*308mm(Volume:20.6L)
Internal Chamber Dimensions:Φ240*250mm(Volume:11.3L)
Power Rating:6000w
The appearance of the equipment is moderate with the volume of the vacuum chamber, covering an area larger than PTP-1V, and the film layer is uniform and high precision. It is suitable for a certain amount of research institutes, schools and other laboratories.
Product Description
【Operating Principle】
The parylene coating equipment is a vacuum coating system that uses the chemical vapor deposition (CVD) process. The entire working process takes place in a vacuum environment and mainly consists of three core steps:Vaporization-Pyrolysis-Deposition
It is specifically designed to form ultra-thin and uniform parylene protective coatings， providing comprehensive protection for the products.
【Advantages】
Excellent conformality, capable of uniformly covering complex shapes, sharp edges, and crevices;
Uniform film layer, thickness can be precisely controlled, with a thickness uniformity of ±5%;
Excellent protective performance, featuring high insulation strength, resistance to high and low temperatures (-200°C to 350°C), corrosion resistance, resistance to acids and alkalis, waterproof and moisture-proof properties;
【Application】
Aerospace and Defense、Medical Devices、Automotive 、Electronics and Semiconductor 、Elastomers、etc
【Why choose Penta Nano】
Reliable
Recipe-based automation ensures reproducible coatings to meet stringent quality standards
Low Maintenance
Precision engineering and robust materials minimize the need for frequent downtime or repairs.
High Quality
Penta’s equipment is CE certified to meet EU safety, health and environmental protection requirements.
